Terminal Bushing / Transformer Bushing

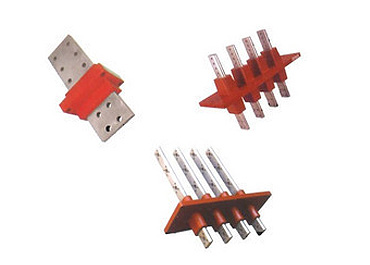

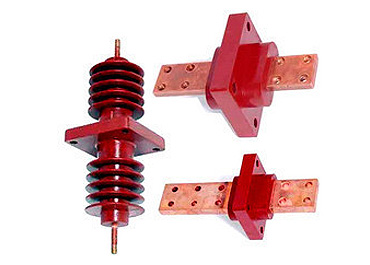

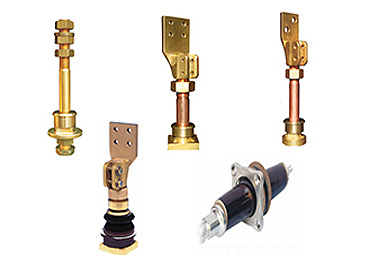

We are engaged in offering the clients with superior quality Epoxy Resin Cast Bushing with Copper, Brass Steel according to their requirements and specifications. Made from premium grade brass and copper steel, the entire range is widely availed due to its durability and high functionality. This whole range finds application in low and high current termination in distribution transformer. Furthermore, the whole range is offered to the clients at cost-effective prices.

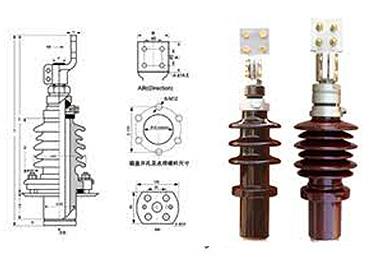

Transformer Bushings offered by us finds application for Power / Distribution / Cast Resin / Dry Type / Furnace / Loco / Induction / Booster / CT & PT Transformers. These are manufactured in accordance with Indian Standards - IS : 3347, Din Standards - 42530- 42531-42532, Bs 2562 and also as per customers given specifications and drawings.

For Entire Range of LV & HV Bushings:

Class: 1 kV - 3 kV - 12 kV - 36 kV - 52 kV - 72.5 kV

Rated Current: 250 A - 630 A - 1000 A - 2000 A - 3150 A - 4500 A - 5000 A - 8000 A up to 10000 Amps

Supplied in ready to use kits, with complete set of accessories like sealing washers, gaskets, Bushing support Rings (Clamping Rings) and Clamps (Aluminium Members), Hardware (Bolts / Nuts / Spring Washers) and Arcing Horns

Finish and Plating:

Natural

We have in-house plating (Tin, Nickel, Silver) capabilities that allow us to meet complete delivery requirements of our key customers

This also gives us guaranteed plating thickness as per customer's specifications (from material specifications of HV / LV Bushings)

Material Specifications of LV/HV Bushings:

---
